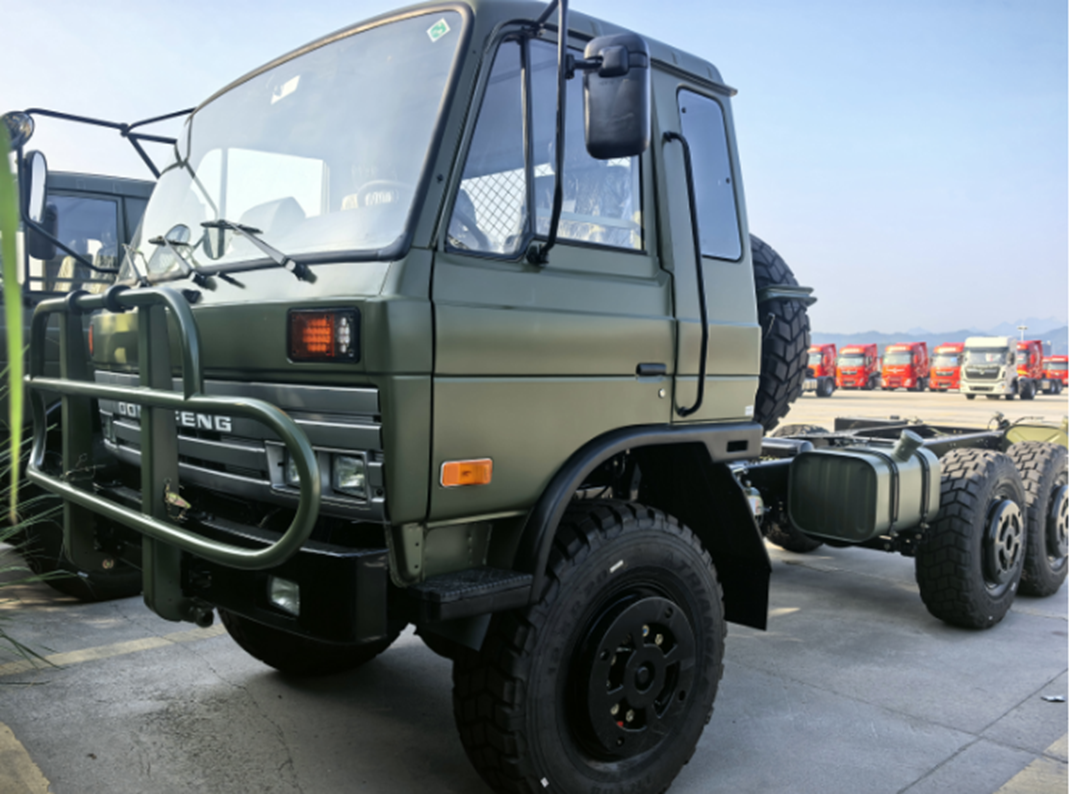

Military Off-Road Vehicle Chassis (Single Door, 1.5-Row Cab) (EQ2102GJ)

Join the SHENZER VIP list and receive a 10% discount code instantly.
Stay updated on exclusive builds, offers, and new releases.

+86 400-1856-560

[email protected]

Item	Specification	Value/Description
Drive Configuration	-	6×6
Gross Weight (kg)	Off-road load: 3,500kg	10,675 (with winch), 10,435 (without)
Payload (kg)	Off-road: 3,500; Highway: 5,000	-
Curb Weight (kg)	-	6,965 (with winch), 6,725 (without)
Dimensions (mm)	Length	7,760
	Width	2,470
	Height	2,740
Cargo Bed Dimensions (mm)	Length	4,800
	Width	2,294
	Height (side/rail)	550/900
Wheelbase (mm)	-	3,475 + 1,250
Track (Front/Rear) (mm)	-	1,876 / 1,870
Min. Turning Diameter (m)	-	35/34
Approach/Departure Angle (°)	-	18.8
Ground Clearance (mm)	Under axles (3,500kg load)	305
	Under transfer case	510
Engine	Manufacturer	Dongfeng Cummins Engine Co., Ltd.
	Model	EQ6BT5.9
	Rated Power (kW)/(r/min)	118/2,800
	Max. Torque (N·m)/(r/min)	546/1,700
Clutch	-	Φ350mm single-disc, dry, hydraulic
Transmission	-	5-speed manual
Transfer Case	-	2-speed mechanical (High: 1.348, Low: 2.41)
Front Axle	-	3.7-ton capacity
Middle/Rear Axle	-	4-ton single-reduction dual rear axles
Steering	-	Integral power steering
Tires	-	12.5R20 radial off-road tires

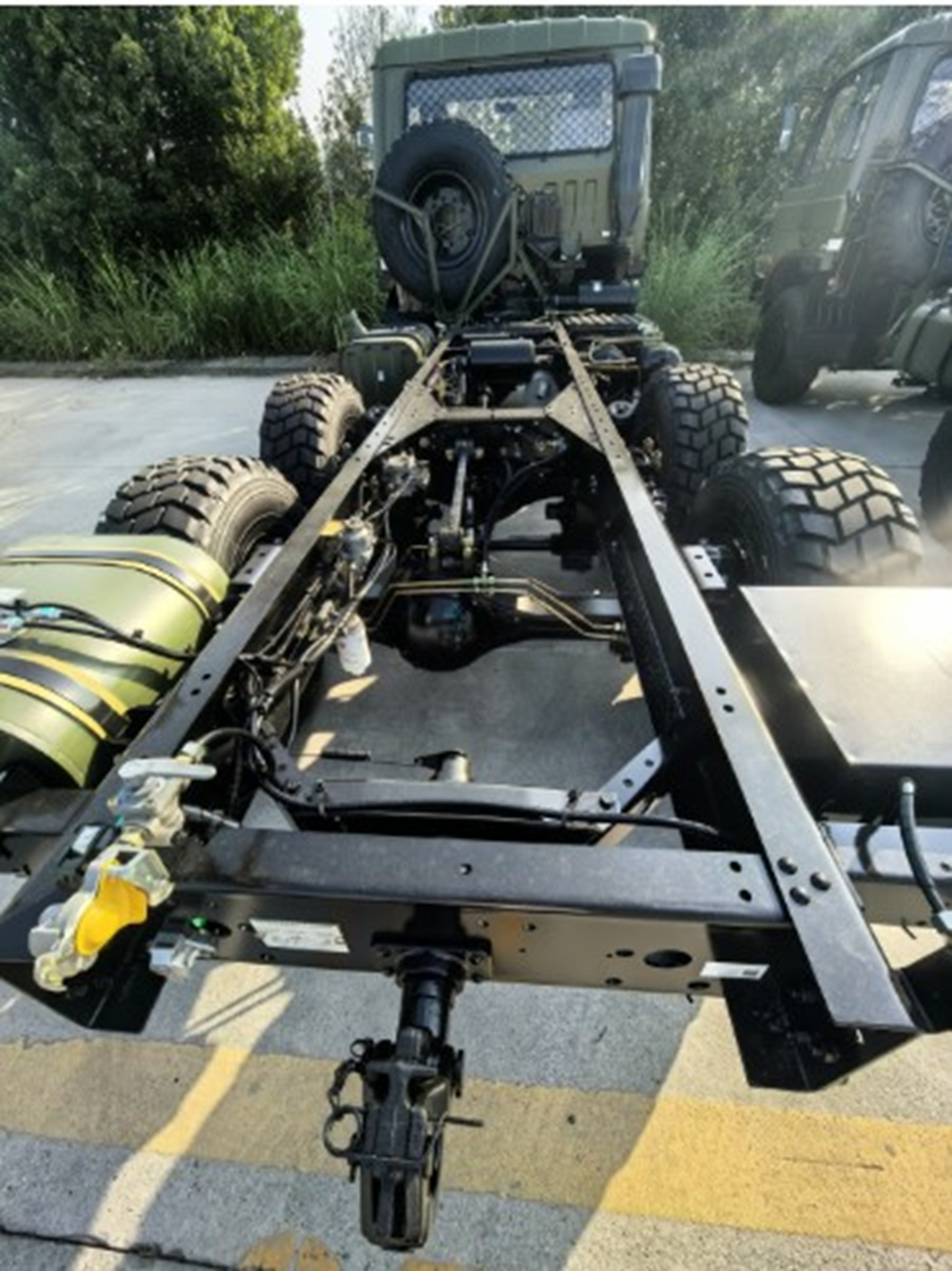

Frame Section (mm)	-	232×75×6.5

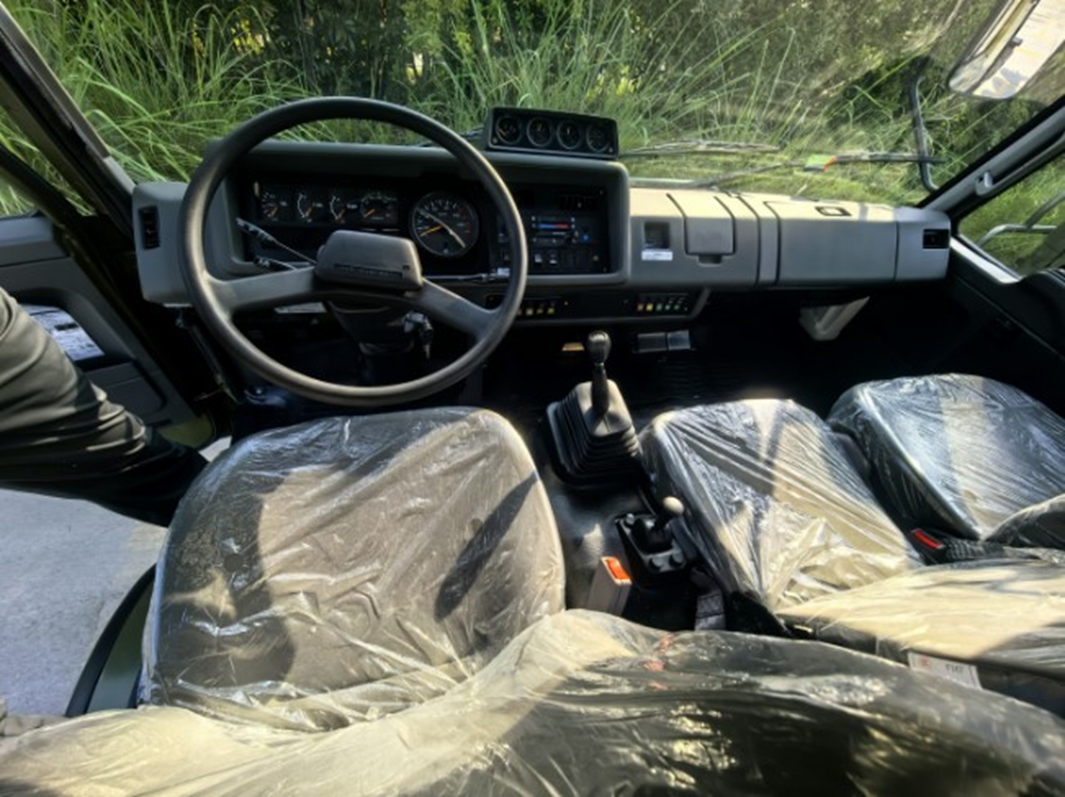

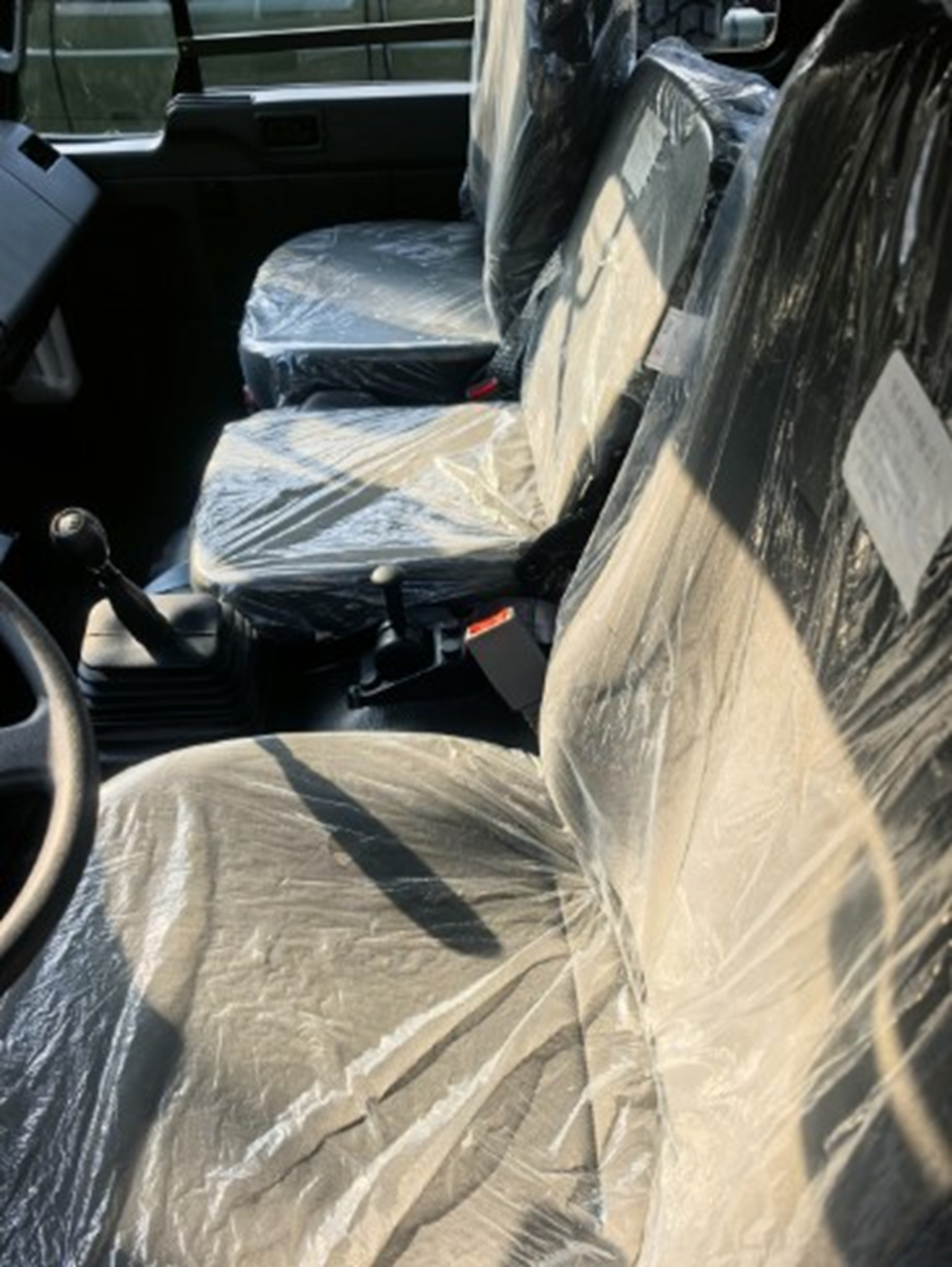

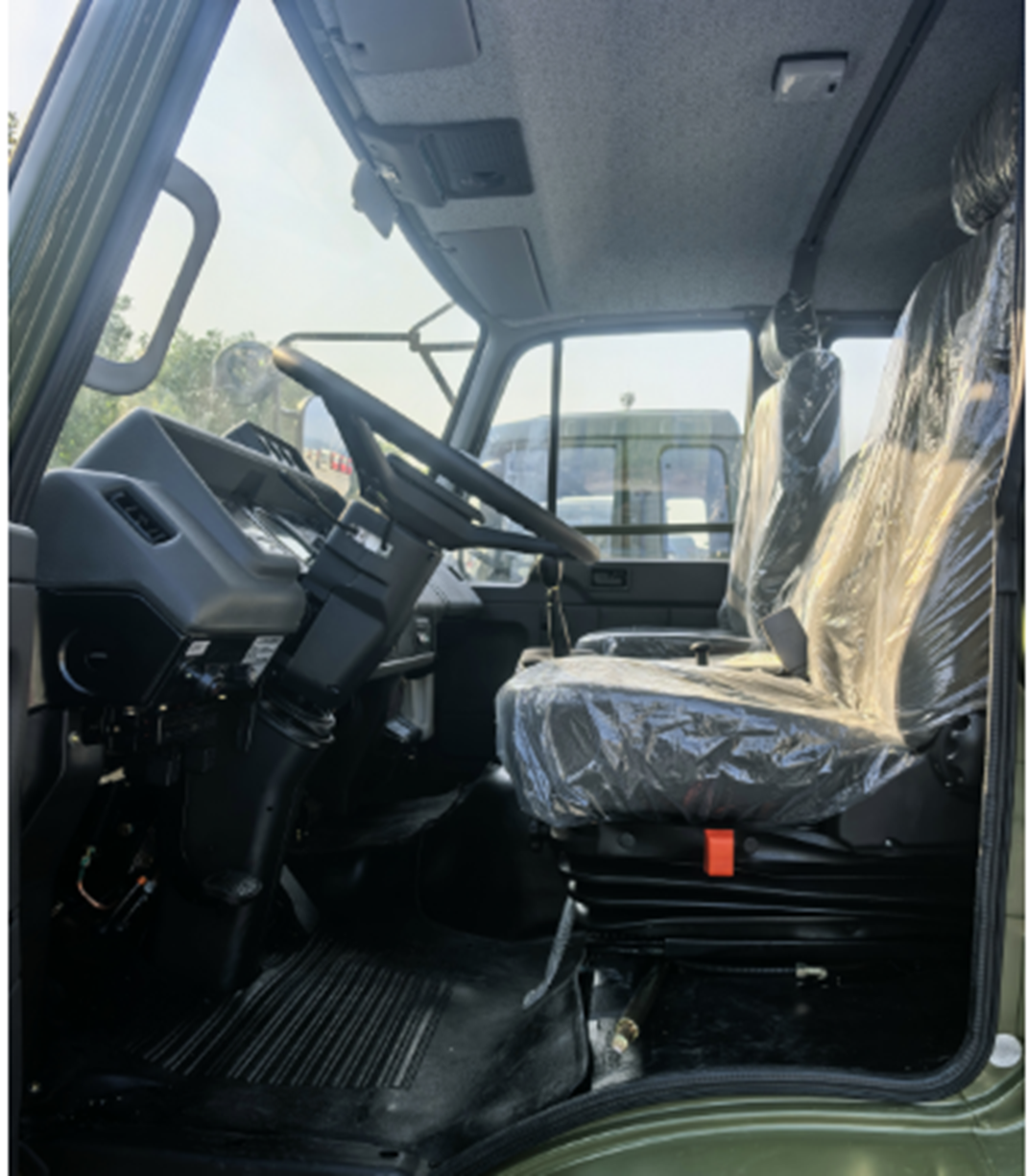

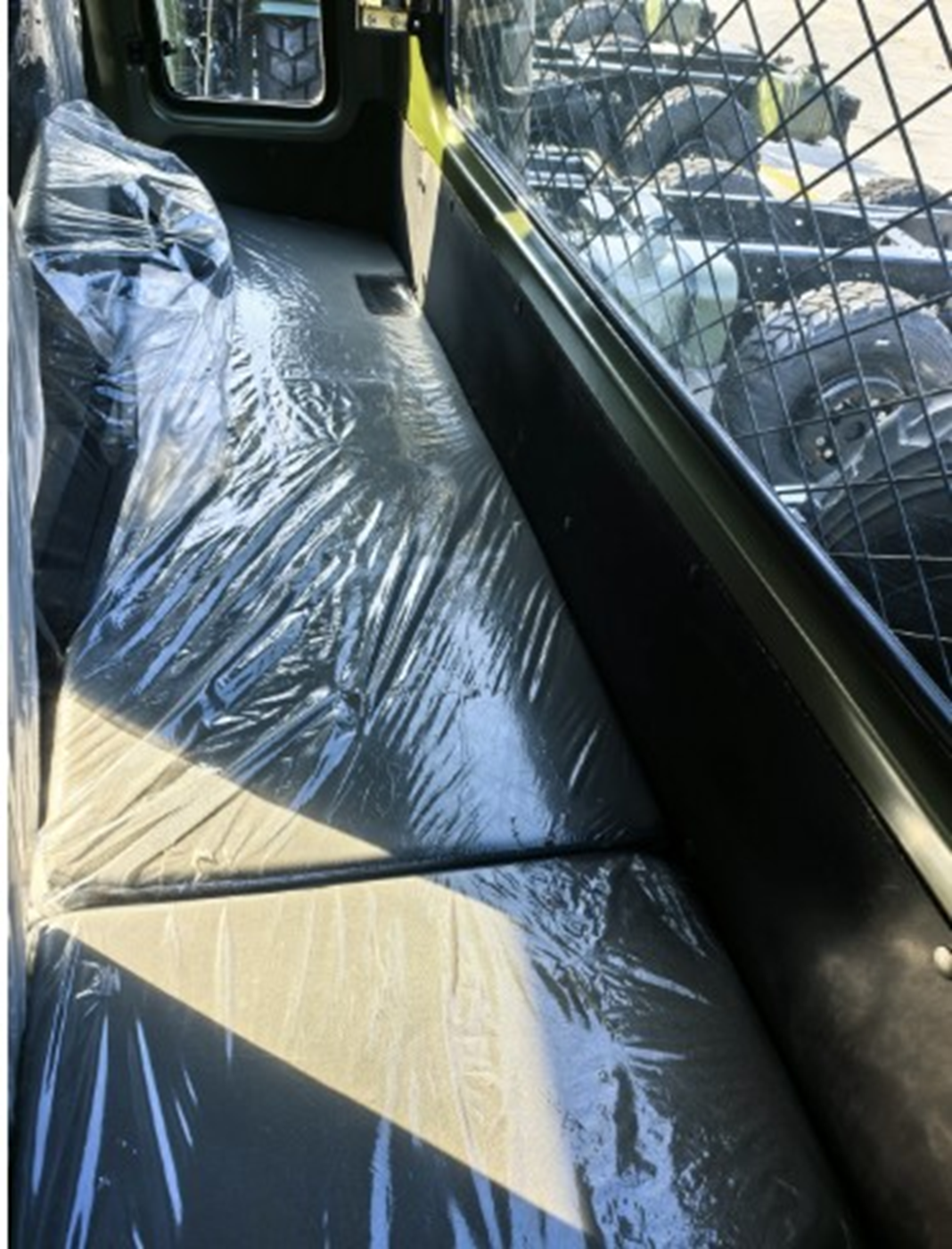

Cab	-	Flat-nose 1.5-row cab with gun rack
Fuel Tank (L)	-	Main: 145; Auxiliary: 50
Max. Speed (km/h)	-	90
Max. Gradeability	3,500kg load, no trailer	8m
	3,500kg load + 4,800kg trailer	0.4
Braking Distance (m)	3,500kg load, 30km/h	≤8
Parking Gradeability	-	0.4
Fuel Consumption (L/100km)	3,500kg load, no trailer	26.5
Range (km)	-	700
Vertical Obstacle (mm)	-	700
Trench Crossing (mm)	-	700
Fording Depth (m)	-	1
Options	-	PTO and winch available
